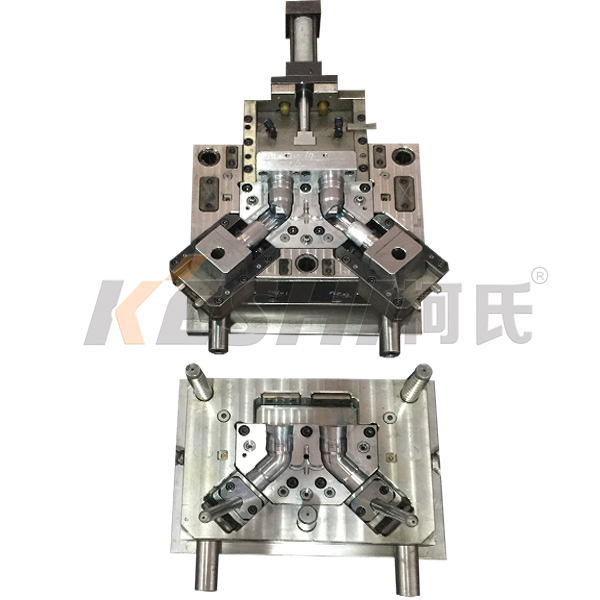

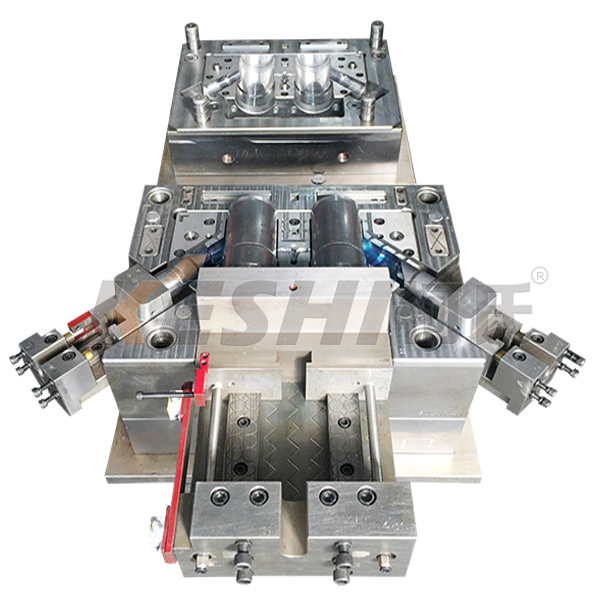

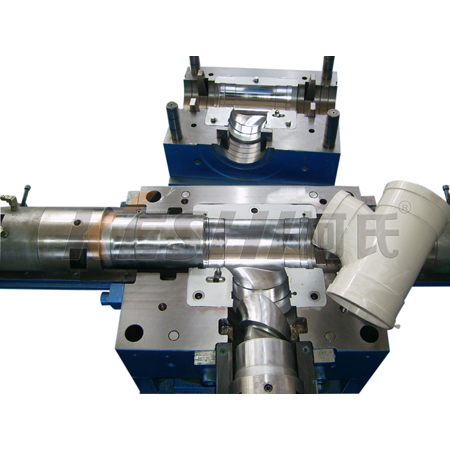

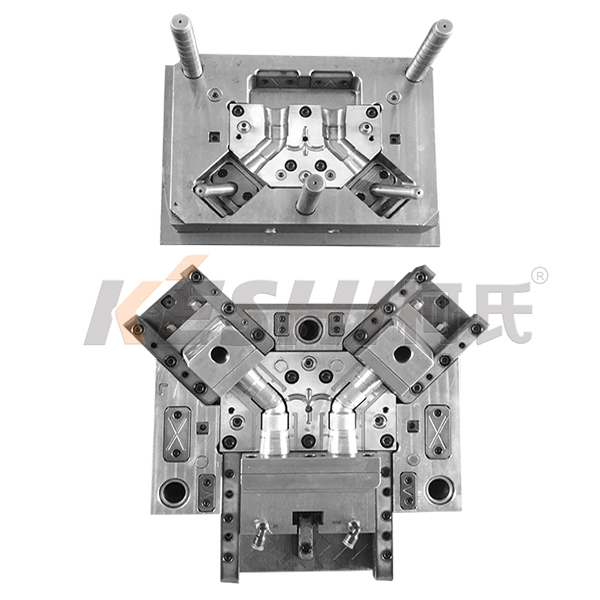

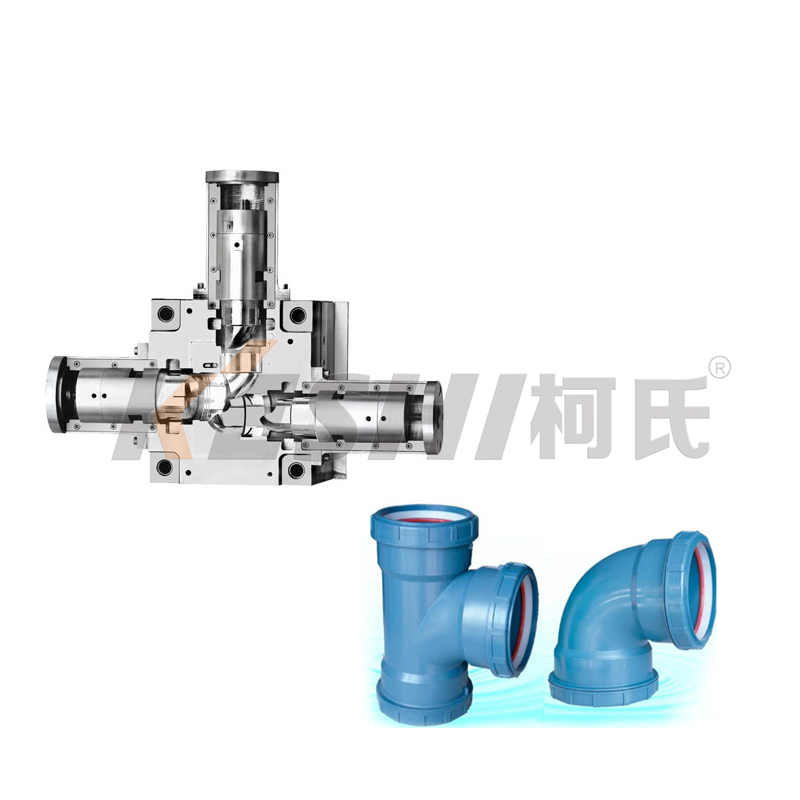

How to Test the Performance of a Pipe Fitting Mould?

Testing the performance of a pipe fitting mould is a multi-step process that combines mechanical inspection, trial production, and process verification. The goal is to confirm that the mold meets design and production requirements before mass manufacturing.

1. Dimensional and Structural Inspection

Before trial molding, critical dimensions of the mold cavity, core, and parting surfaces should be measured using coordinate measuring equipment or precision gauges. This step verifies tolerances related to pipe diameter, socket depth, and sealing groove geometry.

2. Trial Molding and Process Validation

Trial runs are conducted using the specified plastic material, such as PVC, PP, or PE. During these tests, parameters including injection pressure, melt temperature, and cooling time are recorded. The molded fittings are then checked for dimensional stability and visual consistency.

3. Functional Performance Testing

Finished pipe fittings are tested for assembly compatibility and sealing performance. For water pipe fittings, pressure or leakage tests are often carried out to confirm that the molded parts meet usage requirements.

4. Cycle Stability Assessment

Continuous trial cycles, typically 50 to 100 shots, are used to evaluate mold stability. Any variation in product weight, shrinkage, or surface quality may indicate issues in cooling balance or mold rigidity.

Through these steps, manufacturers can identify potential risks before full-scale production begins.

What Are the Common Defects in Pipe Fitting Mold and How Can They Be Avoided?

Despite careful design, pipe fitting molds may still encounter defects during production. Understanding these issues and their causes helps reduce rework and downtime.

1. Flashing at Parting Lines

Flashing occurs when molten plastic escapes from the mold parting surface. This is often caused by insufficient clamping force, worn parting edges, or uneven mold alignment.

Avoidance methods: Improve mold fitting accuracy, maintain parting surfaces, and ensure adequate machine clamping force.

2. Warpage and Deformation

Warped pipe fittings may not align correctly during installation. This defect is usually linked to uneven cooling, inconsistent wall thickness, or improper ejection.

Avoidance methods: Optimize cooling channel layout, maintain uniform wall thickness, and adjust ejection force distribution.

3. Short Shots

Incomplete filling of the cavity results in short shots, especially in long or thick pipe fittings. This defect is often related to low injection pressure or poor gate design.

Avoidance methods: Increase injection pressure, improve gate size and location, and ensure proper material flow.

4. Sink Marks

Sink marks may appear near thick sections such as reinforcement ribs or socket areas. They occur due to material shrinkage during cooling.

Avoidance methods: Reduce local wall thickness, improve packing pressure, and extend holding time.

5. Surface Roughness or Flow Marks

Uneven surface texture affects both appearance and sealing performance. This is commonly caused by low mold temperature or insufficient polishing.

Avoidance methods: Adjust mold temperature settings and improve cavity surface preparation.

Systematic defect analysis and targeted corrective actions help maintain stable mold operation.

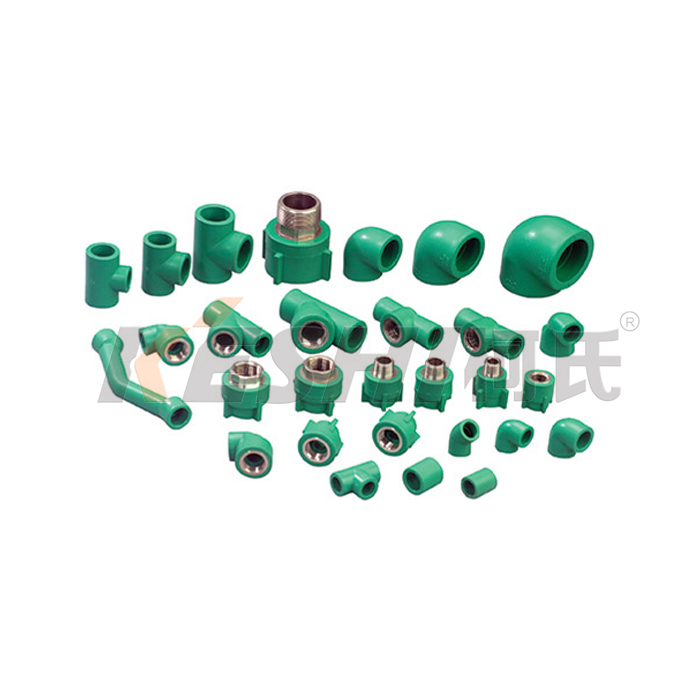

How to Improve the Surface Finish of Water Pipe Fitting Mold Products?

Surface finish is particularly important for water pipe fittings, as it influences appearance, flow resistance, and sealing reliability. Several measures can be applied to improve surface quality.

1. Improve Mold Surface Processing

Fine polishing or controlled texturing of the mold cavity reduces surface irregularities. For water pipe fittings, mirror or semi-matte finishes are often selected based on functional needs.

2. Optimize Mold Temperature Control

Stable and uniform mold temperature allows molten plastic to flow smoothly along the cavity surface. This reduces flow lines and improves surface consistency.

3. Adjust Injection Parameters

Appropriate injection speed and pressure help avoid turbulence and air entrapment. Gradual filling is particularly important for fittings with long flow paths.

4. Select Suitable Raw Materials

Using plastic materials with stable melt flow properties and low impurity content contributes to a cleaner surface finish. Proper drying of hygroscopic materials is also necessary.

5. Maintain Mold Cleanliness

Regular cleaning removes residue, release agents, and deposits that can affect surface appearance. Preventive maintenance schedules help sustain consistent results over long production cycles.
