The Functional Applications of Injection Moulding Dies Across Industries

It is the precision-engineered cavity that shapes molten polymer into a definitive form. The process it facilitates, injection moulding, is distinguished by its capacity for efficient mass production of items with complex geometries and reliable consistency. The application of these dies extends across a spectrum of fields, from ubiquitous household items to specialized industrial sectors, underpinning modern material production.

Structural Logic and Process Integration

An injection moulding die is not a singular piece but an assembly of machined blocks, typically from hardened steel or aluminium, containing a custom-shaped cavity. The process involves melting plastic granules, injecting the melt under pressure into the die cavity, allowing it to cool and solidify, and then ejecting the finished part. The die’s design dictates the part’s form, surface texture, and dimensional accuracy. This method’s advantages include rapid cycle times, minimal post-production waste, and the ability to integrate multiple components into a single molded piece. The utility of the die is thus realized through the items it produces, which permeate daily life and industrial operations.

Applications in the Household Sphere

Within domestic environments, injection moulded items are pervasive, contributing to functionality, safety, and organization. The dies create products that are durable, cost-effective, and easily sanitized.

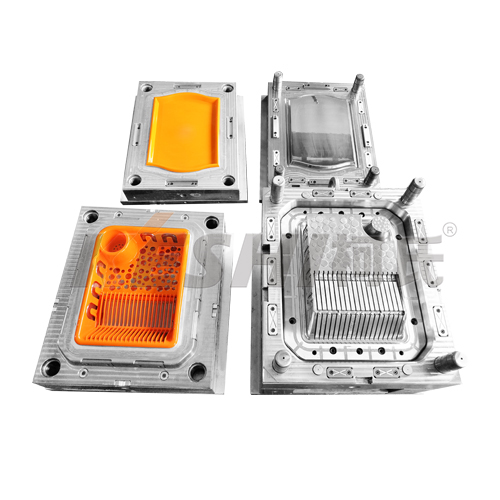

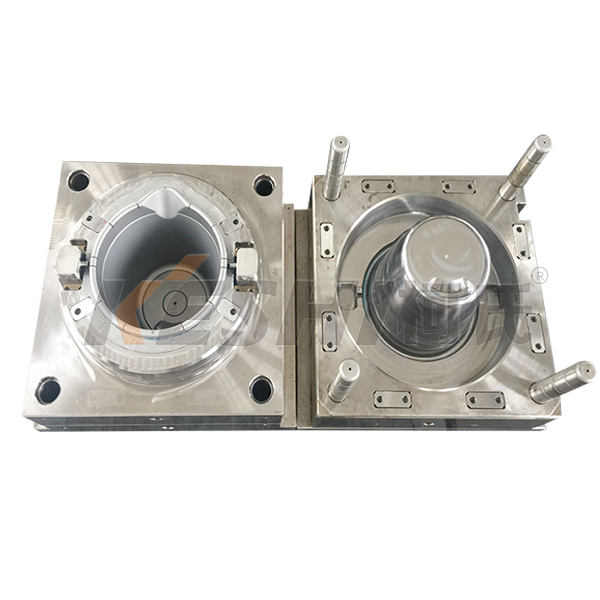

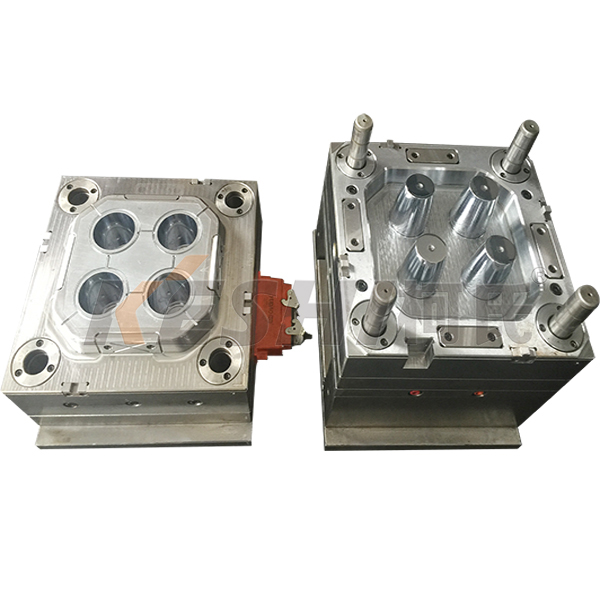

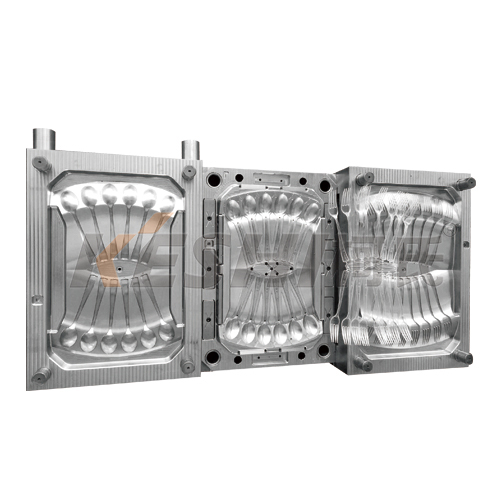

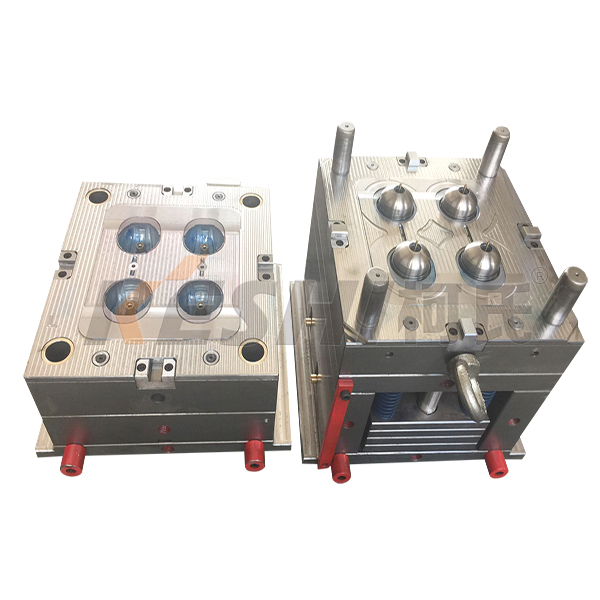

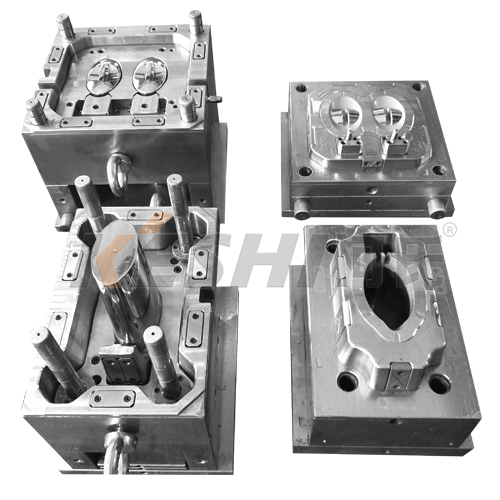

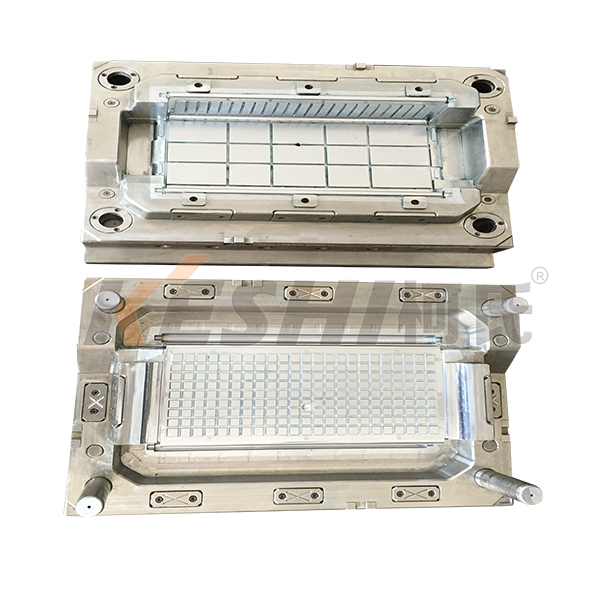

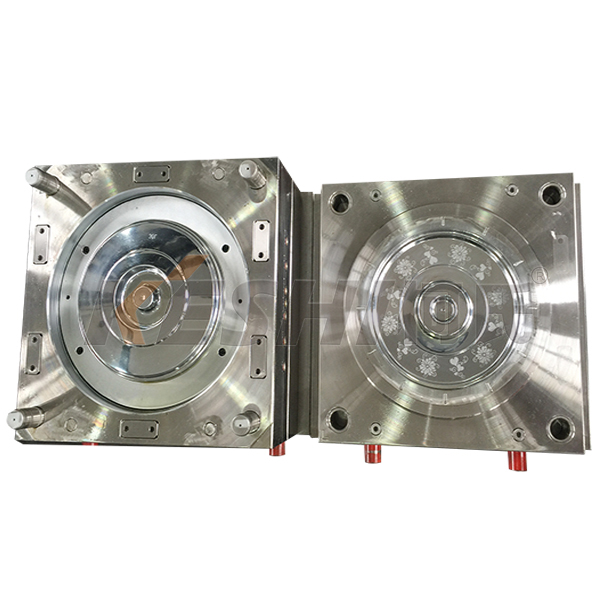

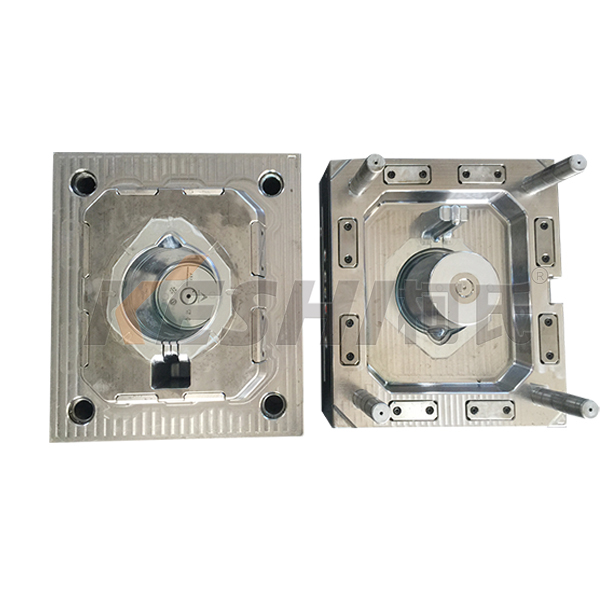

• Food Storage and Kitchenware: Items such as food containers, lunch boxes, measuring cups, and refrigerator liners rely on dies for their seamless construction and precise volumes. The molds can produce thin, consistent walls and secure sealing interfaces.

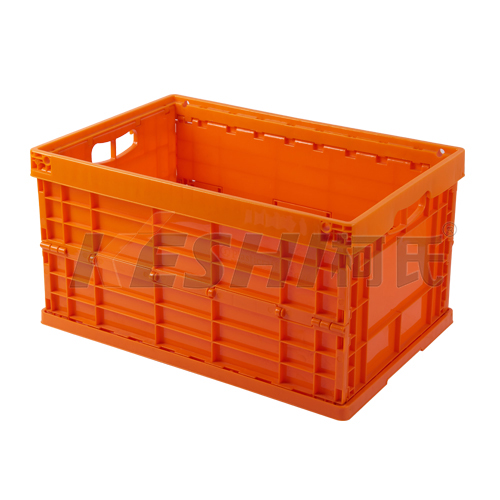

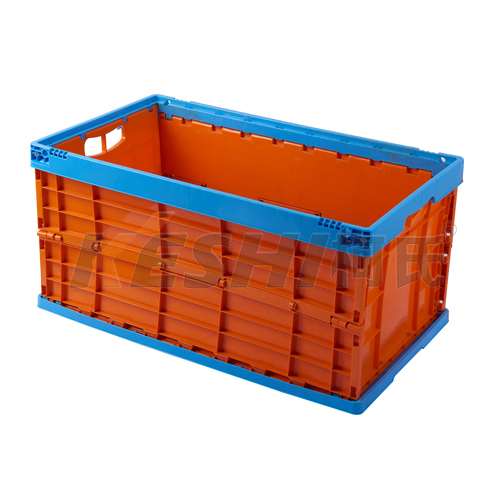

• Household Containers and Organizers: Laundry baskets, storage totes, trash receptacles, and modular shelving components are typically injection molded. Dies for these products are often large and designed for structural rigidity.
• Consumer Electronics Housings: The casings for televisions, computers, kitchen appliances, and power tool bodies are produced using high-precision dies. These tools must create parts with exact apertures for buttons and screens, integrated snap-fits, and an aesthetically pleasing surface finish.

What distinguishes high precision molding from standard injection molding?

High precision injection molding is characterized by part tolerances that are typically measured in microns (µm) rather than millimeters. It emphasizes repeatability, consistency across high-volume production runs, and exceptional stability of part dimensions. This is achieved not just through advanced machinery, but through meticulous die design, use of high-grade mold steels, precise temperature control systems, and often integration of automated inspection. The process caters to industries where a minor deviation can affect assembly, performance, or safety.

Which factors are critical for achieving high precision in molded parts?

Several interdependent factors are critical:

Die Design and Construction: The mold must be engineered with balanced filling systems, efficient cooling channels, and robust ejection. It is usually machined from high-performance steels with mirror-finish surfaces and maintained to exacting standards.

• Process Control: Consistent control over injection pressure, speed, and, importantly, temperature (both of the melt and the mold itself) is necessary. Even minor fluctuations can cause variations in part shrinkage and dimensions.
• Material Selection: Engineering-grade resins with predictable and stable shrinkage properties are selected. The material must be thoroughly dried and processed within a tight window of parameters to ensure consistency.
• Measurement and Validation: In-process monitoring and post-production measurement using coordinate measuring machines (CMM) or optical scanners are integral to verifying that tolerances are continuously met.

In which industries is high precision molding commonly required?

This process is essential in industries where component failure is not an option or where miniaturization is key. Primary sectors include:

• Medical and Diagnostic: For components in implantable devices, surgical tools, and analytical equipment where dimensional accuracy affects function and sterility.
• Optics and Photonics: For lenses, light guides, and laser components where surface finish and precise light transmission paths are required.
• Microelectronics: For connectors, sensors, and miniature housings where parts must fit into increasingly small form factors.
• Automotive Electronics: For components in safety systems, sensors, and control units that must perform reliably in varying environmental conditions.

What are the common challenges associated with high precision molding?

Key challenges involve managing cost, complexity, and variability:

Initial Investment: The cost for a high-precision die, advanced machinery, and qualification is significantly higher than for standard molds.

Material Behavior: Managing the inherent shrinkage and potential warpage of plastics at micron-level tolerances requires extensive expertise and simulation.

Environmental Stability: Maintaining a production environment with controlled temperature and humidity is often necessary to prevent material or process drift.

Tooling Wear and Maintenance: Even slight wear on mold components can push parts out of tolerance, demanding a proactive maintenance and replacement schedule for critical mold elements.

Plumbing Fixtures and Hardware: Components like showerheads, pipe fittings, toilet seats, and brush handles are molded. The dies must account for threaded sections and water-resistant properties.

Toys and Recreational Goods: From detailed action figures and building blocks to outdoor furniture and sports equipment, dies enable the safe, colorful, and reproducible production of consumer goods.
