Thinwall Container Mould Fills Unevenly Before Steel Shows Wear

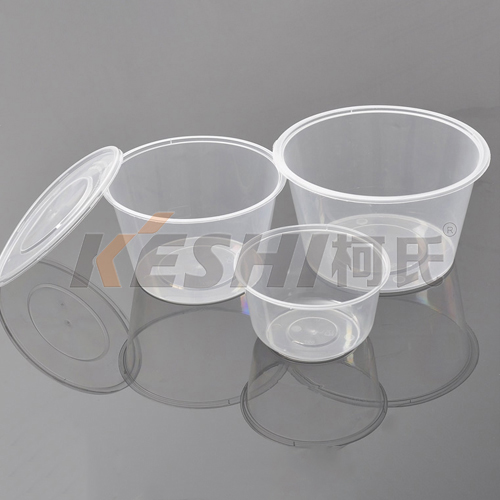

A thinwall container mould produces lightweight plastic cups, bowls, and food trays that stack tightly and sell by the million. The mould arrives delivering thin, consistent walls and superb part-to-part repeatability. Within weeks of high-speed production, the same mould starts producing containers with one side thinner than the other. The steel looks fine. The cooling still runs. But the flow imbalance creates weak spots that rupture under small load. A thinwall container mould that cannot maintain balanced filling generates scrap rates that erase the profit of the entire production run, and the operator blames the resin when the mould's flow path has quietly shifted out of balance.

Runner Imbalance Favours the Shortest Path

Melted plastic travels from the sprue through the runner system to multiple cavities. The shortest path fills first. The longest path fills last. In a thinwall container mould with four cavities arranged in a line, the two cavities closest to the sprue receive material sooner and at higher pressure. The two farthest cavities wait. By the time the flow reaches the far cavities, the near cavities have already begun cooling. The differential filling creates containers of different wall thickness. The operator raises injection pressure to push material to the far cavities. The higher pressure overpackes the near cavities, making their walls even thinner in places.

Runner diameter and length must be balanced across all cavities to equalize flow resistance. A thinwall container mould manufacturer that calculates runner dimensions precisely delivers containers of uniform thickness. One that uses a symmetrical layout without calculating flow resistance ships containers that vary in weight by several grams between cavities.

Gate Design Dictates How the Plastic Enters the Cavity

The gate is the small opening where plastic enters the cavity. Gate size determines flow rate. Gate location determines flow direction. A thinwall container mould with a gate that is too small creates high shear stress that degrades the polymer and creates visible flow lines. A gate that is too large leaves a prominent vestige that requires trimming. More critically, a gate placed at the centre of the base creates flow that radiates outward and fills the container evenly. A gate placed off-centre creates flow that reaches one wall before the opposite wall, and the first-filled wall cools while the last-filled wall still flows.

• Gate thickness relative to part thickness determines whether the gate seals properly after injection
• Gate width determines whether the flow front spreads evenly or jets into the cavity
• Gate location determines whether the flow reaches the far corners before the near sections cool

A thinwall container mould manufacturer that optimises all three gate parameters ships containers with wall thickness variation under 0.05 millimetres. One that treats gate design as a one-size-fits-all decision ships containers that fail under stacking loads.

Venting Traps Air That Displaces Plastic

Air inside the cavity must escape as plastic enters. If the air has no path out, it compresses. The compressed air blocks the flow, and the plastic cannot reach the far corners. A thinwall container mould with inadequate venting produces containers with short shots—incomplete filling at the rim. The operator increases injection speed to overcome the air pressure. The faster flow creates more shear, which heats the plastic and degrades its properties. The containers still fill short, or they fill but show burn marks where the trapped air ignited.

Vent depth and width determine how efficiently air escapes. Vents that are too shallow allow no air flow. Vents that are too deep allow plastic flash. A thinwall container mould manufacturer that cuts vents to the correct depth—typically 0.02 to 0.04 millimetres—delivers containers that fill completely at the designed injection speed. One that neglects venting ships containers that require process adjustments for every batch of resin.

Core Shift Creates Wall Thickness Variation

The cavity and core define the container wall. The core sits inside the cavity, and the space between them becomes the container wall. High injection pressure pushes the core sideways. The shift is microscopic—tenths of a millimetre—but in thinwall containers, a wall thickness of 0.6 millimetres cannot tolerate a 0.1-millimetre shift. The wall on one side becomes 0.5 millimetres thin. The opposite wall becomes 0.7 millimetres thick. The thin side ruptures under stacking load. The thick side cools slowly and sinks.

Core support pins resist the shifting force. A thinwall container mould with ample support pins and stiff core plates holds the core in position. A mould with small support allows the core to deflect, and every shot produces containers with inconsistent wall thickness.

The operator checks wall thickness by cutting containers and measuring with callipers. A mould that produces consistent walls across all cavities and all cycles earns its keep. A mould that drifts after a few thousand shots creates scrap that pays for the replacement tool long before the steel wears out. The thinwall container mould that balances flow, vents air, and supports the core delivers the high-volume production that the market demands. The mould that fails at any of these tasks delivers scrap, and scrap delivers nothing.
