Cooler Box Mould Loses Seal Before Insulation Fails

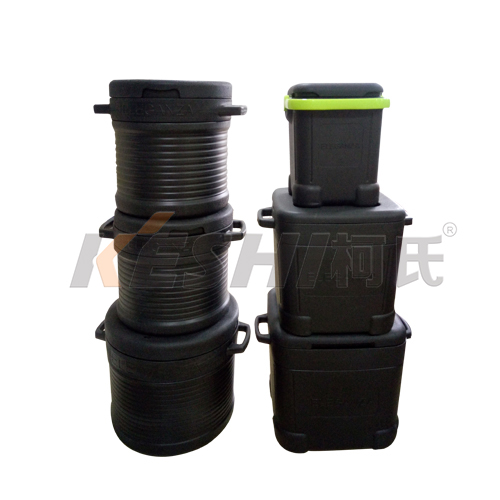

A cooler box mould shapes the plastic panels that become portable coolers—the kind used for camping, tailgating, and grocery runs. The mould arrives producing flawless parts with tight corners and smooth surfaces. Six months of production later, the same mould turns out lids that bow in the center and bases that no longer mate cleanly. The insulation material still performs. The plastic still holds color. But the warped parts create gaps between lid and base, and cool air escapes. A cooler box mould that cannot hold its dimensional accuracy produces boxes that fail their primary job—keeping contents cold—while the material itself remains fully capable of thermal performance. The sealing surface fails before the insulation ever gets a chance to prove itself.

Cooling Rate Imbalance Creates Uneven Shrinkage

The mould heats the plastic to forming temperature and then cools it. The cooling determines the final shape. Water lines run through the mould to extract heat. If the water lines are spaced unevenly, some areas cool faster than others. Faster-cooling areas shrink earlier. Slower-cooling areas stay soft longer and shrink later. The differential shrinkage pulls the part out of flatness. A cooler box mould that produces a flat lid in the morning may produce a bowed lid in the afternoon because the cooling water warmed up as the production day progressed. The mould design sets the potential. The cooling water temperature and flow rate determine whether that potential becomes reality.

Three aspects of the cooling system decide whether the mould produces flat parts shift after shift:

• Water line diameter and spacing relative to the cavity surface, because lines placed too far apart create hot zones between them
• Water temperature consistency, because a chiller that drifts by only 3°C changes the shrinkage rate across the entire part
• Flow rate through each line, because unequal flow creates uneven heat extraction and localized warp

A cooler box mould manufacturer that designs balanced cooling circuits, monitors water temperature continuously, and balances flow between circuits ships moulds that produce flat lids and sealing surfaces every cycle. One that treats cooling as an afterthought ships moulds that produce parts requiring secondary flattening operations, and those operations add cost without fixing the underlying warp.

Lid Warp Opens the Air Gap That Kills Performance

The lid seals against the base. The seal depends on flatness. A lid that bows upward by 2 millimeters at the center creates a gap. The gap allows warm air to enter and cold air to escape. The cooler still looks functional. The lid still closes. But the gap increases the heat transfer rate by several times. A cooler box mould that produces bowed lids turns out coolers that fail the ice-retention test, even though the insulation foam has the same R-value as the flat ones. The sealing surface matters more than the insulation thickness. A perfectly insulated cooler with a poor seal performs worse than a mediocre cooler with a tight seal.

Three indicators tell the production team that lid warp is the real problem rather than foam quality:

• Ice melts from the top down rather than from the edges inward, indicating warm air entering through the lid gap
• Condensation forms on the exterior near the lid hinge before it appears anywhere else
• The lid sits flush at the latch but shows light through the gap at the center when viewed from inside

A cooler box mould user who checks lid flatness before cutting foam samples catches the issue at the moulding stage. One who blames the foam formulation invests in new insulation that cannot overcome the air leak.

Core Ejection Force Distorts the Base Before It Leaves the Mould

The base part cools around the mould core. The core must retract cleanly to release the part. If the core pulls unevenly, the base twists as it comes off. The twist sets into the plastic as it cools the final few degrees outside the mould. A cooler box mould with worn ejector pins or insufficient draft angle creates base parts that wobble when placed on a flat surface. The wobble translates to a poor seal with the lid. The base that looks good in the operator's hand rocks slightly on the inspection table. That rocking means the cooler will not sit flat in the car trunk, but more importantly, it means the sealing rim does not align with the lid.

• Draft angle on the core surface determines how easily the part releases without distortion
• Ejector pin placement determines whether the part pushes off evenly or torques during ejection
• Core surface finish determines whether the plastic sticks and drags during retraction

A cooler box mould manufacturer that designs adequate draft, places ejector pins symmetrically, and polishes core surfaces to reduce stickiness ships bases that release straight and stay straight. One that less draft to improve internal volume ships bases that twist on ejection and wobble forever.

Gate Location Affects Flow Balance and Final Warp

Plastic enters the mould through the gate. The flow path from the gate to the far corners determines how the plastic fills. If the gate is off-center, the flow reaches one side earlier. The early-filled side begins cooling while the plastic still flows on the far side. The differential cooling creates residual stress that warps the part. A cooler box mould with a centered gate produces balanced flow and balanced shrinkage. A mould with an off-center gate—often chosen to simplify runner design—produces parts that curl toward the gate side.

Storage and Handling Set Distortion Before the Next Cycle

The mould itself stores between production runs. A cooler box mould placed on an uneven rack with heavy tooling stacked on top experiences deflection. The deflection changes the cavity clearance. The next production run starts with a mould that is no longer flat. The parts come out warped from the first shot. Manufacturers who store moulds on flat surfaces with even support keep their cavity geometry intact. Those who stack moulds or lean them against walls unknowingly retrain the tool steel. The steel springs back slightly each time, but over repeated storage cycles, the memory shifts. The cooler box mould that produces warped parts may have been stored incorrectly between jobs, and the production team blames the process when the storage caused the damage.
